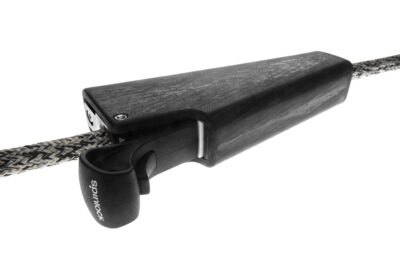

Spinlock ZS Carbon Jammers for lines 10-32mm
Spinlock ZS Carbon Power Jammer’s intended use is for high loads. This jammer has an unrivalled performance for larger diameters and high loads with the advantage of winch controlled release. The new digitally modelled jaw surfaces hold high tech rope securely at its safe working load of up to 4000 kg (8820 lbs) for the largest version. The ZS jammer has been newly styled to match the XTS, CXS, and XX clutches. In addition to the new look, the performance on smaller diameter lines and handle ergonomics have improved.
The ZS Carbon Power Jammer is lightweight jammer for high loads. Their intended purpose is for ultimate load holding and minimal product weight. They have an ultra lightweight, super strength body for lines from 10 to 32 mm with a safe working load up to 12,000 kg (26,460 lbs) for the largest version.
New custom, digital jaws are now available for the ZS series powerjammers. The digital jaw surfaces are specifically designed to match rope covers and offer more consistent holding for longer. The different version available are the P-Series jaws for Dyneema core and Polyester covers, the H-Series jaws fro Dyneema core and cover made from a blend of Polyester and other materials such as Technore or Vectran, and the HC-Series jaws that have a ceramic finish which resists the polishing and wear of grip surfaces.
Spinlock ZS Carbon Jammer Features
- Digitally modelled jaw surfaces hold high tech rope securely at its safe working load.
- Improved performance on smaller diameter lines
- Can be set up for ‘Remote’ operation
- Easy on-deck service access
- Bonded versions available. Ideal solution for low profile side mounting on deck and spars
- Smaller and lighter than standard models
- Supplied unpainted for direct bonding
- Ceramic jaws available for use with ropes with blended covers; polyester and high tech fibres such as Aramid, Technora, Codura and Vectran
- High visibility handle printing available
Specifications
Lines: 10mm – 32mm (3/8″ – 1 1/4″)
Loads up to 12,000kg (26,460lbs)
Mast Mounting
Mounting vertical on spars – custom mounting plates available for each jammer (not applicable to bonded jammers)
Weight & Fastners
Weight:
ZS1014C – 1190g (41.7oz)
ZS1014B – 880g (31.0oz)
ZS1618C – 1390g (49.0oz)
ZS1618B – 910g (32.1oz)
ZS1824C – 2100g (73.5oz)
ZS2632C – 5100g (179.9oz)
Fasteners Needed:
ZS1014C – 4 x M10 (3/8″) stud, supplied
ZS1014B – bonded
ZS1618C – 6 x M10 (3/8″) stud, supplied
ZS1618B – bonded
ZS1824C – 10 x M10 (3/8″) stud, supplied
ZS2632C – 14 x M10 (3/8″) stud, supplied
For more information about and a full product range, please go to the official Spinlock website: www.spinlock.co.uk
